Brand Name: | Future |
MOQ: | 100 000 sets |
Price: | Negotiable |
Packaging Details: | Carton |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Attribute | Value |
---|---|

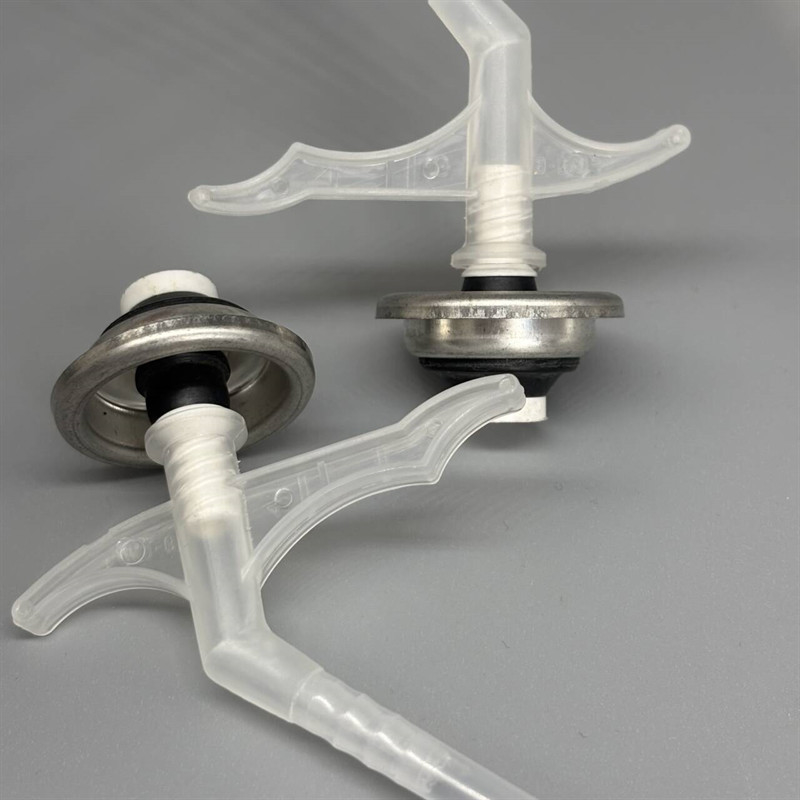

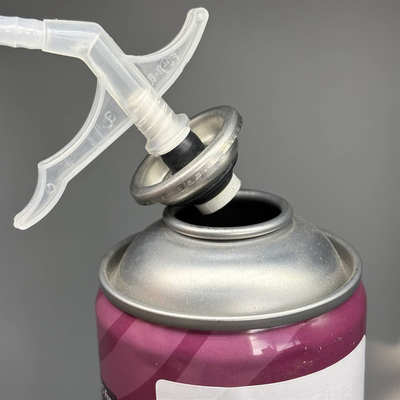

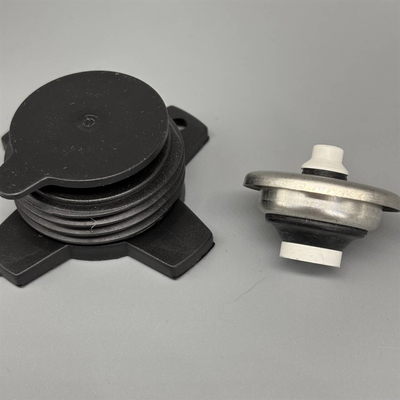

Product Name | PU foam spray valve |
Material | Tinplate |
Type | Long Stem Pu Valve |
Application | Building and Construction |
Feature | Eco-friendly, Durable, Flexible |
Component | Material/Details | Options |
---|---|---|

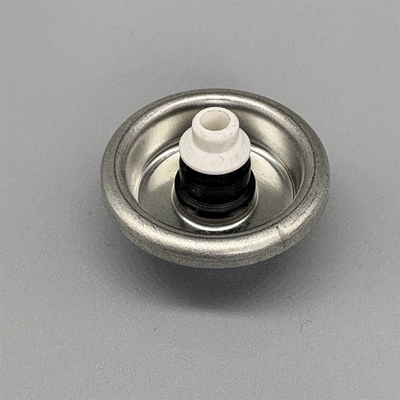

Mounting cup | Tinplate | With or without dimples, plain or lacquer (clear or gold) |
Outer Gasket | Buna | |
Inner Gasket | Buna, Neoprene, Butyl | |
Stem | Nylon | |
Orifice | 1x0.46mm, 1x0.51mm, 2x0.51mm, 2x0.61mm, 4x0.61mm | |
Spring | Stainless steel | |
Housing | Nylon | Φ4.3mm (Spray Area 14.52mm²) |
VPH Spray Area | 6.7mm² | |
Steel Ball | Φ3.5mm |
![]() |
